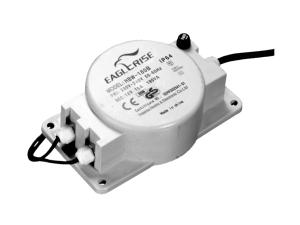

Outdoor Waterproof Transformer

Features
1. The outdoor waterproof transformer is manufactured strictly conforming to EN61558-2-6:1997 and EN61558-1:1997+A1:1998+A11:2003, and we have gained corresponding design patent in China.
2. The epoxy resin is applied not only to make sure that this device is completely sealed, but also to get lowered temperature rise. Our products have a wide power range of 105-500VA, and they are all GS certificated.
3. Aside from the above, this high quality product could offer stable performance throughout its long life, and the IP64/IP66 rating makes it extremely suitable for outdoor use.

Applications
This waterproof transformer is commonly accepted for outdoor applications, such as chlorinator, outdoor security system, purifying device for swimming pool, etc.

Specifications
Model Rated power Input voltage Output voltage Dimensions Weight Approval
A B H C E D d
HBW-105A(B) 105W 220-240V 24V (12V) 195 110 60 175 90 124 8 2.3kg GS
HBW-150A(B) 150W 220-240V 24V (12V) 195 110 60 175 90 124 8 2.6kg GS
HBW-180A(B) 180W 220-240V 24V (12V) 195 110 60 175 90 124 8 2.9kg GS
HBW-200A(B) 200W 220-240V 24V (12V) 210 110 70 190 90 138 8 3.5kg GS
HBW-250A(B) 250W 220-240V 24V (12V) 210 110 70 190 90 138 8 3.7kg GS
HBW-300A(B) 300W 220-240V 24V (12V) 210 110 70 190 90 138 8 4.2kg GS
HBW-350A(B) 350W 220-240V 24V (12V) 210 110 80 190 90 138 8 4.6kg GS
HBW-400A(B) 400W 220-240V 24V (12V) 225 120 80 205 100 152 10 5.5kg GS
HBW-450A(B) 450W 220-240V 24V (12V) 225 120 80 205 100 152 10 5.7kg GS
HBW-500A(B) 500W 220-240V 24V (12V) 225 120 80 205 100 152 10 6.0kg GS

Related Names
Toroidal Power Transformer | Outdoor Power Adaptor | Low Voltage Electric Transformer
