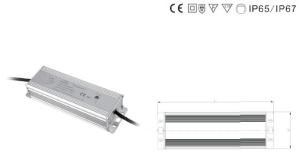

Constant Current/Constant Voltage LED Switch Mode Power Supply

The constant current/constant voltage LED switch mode power supply could be applied for diverse LED lighting systems. It has a wide input voltage range, and built-in active type power factor correction is also realized. The protections against overload, overvoltage, over temperature and short circuit keep our product in a safe condition.

Our product passes 4kV lightning surge test, and it could offer normal performance when the ambient temperature varies from -40°C to +70°C. Moreover, this LED SMPS is in accordance with the safety regulations of CQC, CE and CB.

Other Details
1. Installation type: Independent
2. Power supply connection: Lead wire
3. Power factor: >0.9W
     Short circuit protection

Standards
1. Magnetic emission: EN55015
2. Harmonic: EN61000-3-2
3. Flicker: EN61000-3-3
4. Immunity: EN61547
5. Safety Standard: EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

1. LED Power Supply: Constant Voltage Driver for General Purpose
Model Input Voltage Constant Voltage Rated Load Ta Tc Typical Efficiency Power Factor Dimensions
L(mm) W(mm) H(mm)
ESL035-12PV 100-240V 12V 35W 60°C 90°C ≥82% >0.9 172 42.5 34.5
ESL035-24PV 100-240V 24V 35W 60°C 90°C ≥85% >0.9 172 42.5 34.5
ESL060-12PV 100-240V 12VDC 60W 60°C 90°C ≥84% >0.95 173 68 34.5
ESL060-24PV 100-240V 24VDC 60W 60°C 90°C ≥86% >0.95 158 68 34.5
ESL075-12PV 100-240V 12VDC 75W 60°C 90°C ≥84% >0.95 206 68 34.5
ESL075-24PV 100-240V 24VDC 75W 60°C 90°C ≥88% >0.95 196 68 34.5
ESL100-12PV 100-240V 12VDC 100W 60°C 90°C ≥86% >0.95 206 68 34.5
ESL100-24PV 100-240V 24VDC 100W 60°C 90°C ≥88% >0.95 196 68 34.5
ESL150-12PV 100-240V 12VDC 150W 60°C 90°C ≥90% >0.95 228 68 39.5
ESL150-24PV 100-240V 24VDC 150W 60°C 90°C ≥90% >0.95 228 68 39.5
ESL220-12PV 100-240V 12VDC 220W 60°C 90°C ≥89% >0.95 255 68 39.5
ESL220-24PV 100-240V 24VDC 220W 60°C 90°C ≥90% >0.95 250 68 39.5
ESL300-12PV 100-240V 12VDC 300W 60°C 90°C ≥88% >0.95 259 98 44.5
ESL300-24PV 100-240V 24VDC 300W 60°C 90°C ≥90% >0.95 259 98 44.5
Remark Except 300W power supply, the length (L) of IP67 series product is 10mm longer.
2. LED Power Supply: Universal Constant Current Driver
Model Input Voltage Constant Current Operating
Voltage Range 		Ta Tc Typical Efficiency Power Factor Dimensions
L(mm) W(mm) H(mm)
ESL035-24PC 100-277V 1450mA 12-24V 60°C 90°C ≥82% >0.9 172 42.5 34.5
ESL035-50PC 100-277V 700mA 30-50V 60°C 90°C ≥85% >0.9 172 42.5 34.5
ESL060-36PC 100-240V 1670mA 22-36V 60°C 90°C ≥86% >0.95 173 68 34.5
ESL060-48PC 100-240V 1250mA 29-48V 60°C 90°C ≥86% >0.95 158 68 34.5
ESL075-36PC 100-240V 2080mA 22-36V 60°C 90°C ≥88% >0.95 206 68 34.5
ESL075-48PC 100-240V 1560mA 29-48V 60°C 90°C ≥88% >0.95 196 68 34.5
ESL100-48PC 100-240V 2080mA 29-48V 60°C 90°C ≥88% >0.95 206 68 34.5
ESL100-143PC 100-240V 700mA 86-143V 60°C 90°C ≥90% >0.95 196 68 34.5
ESL150-48PC 100-240V 3125mA 29-48V 60°C 90°C ≥90% >0.95 228 68 39.5
ESL150-214PC 100-240V 700mA 172-214V 60°C 90°C ≥90% >0.95 228 68 39.5
ESL220-48PC 100-240V 4580mA 29-48V 60°C 90°C ≥90% >0.95 255 68 39.5
ESL220-314PC 100-240V 700mA 190-314V 60°C 90°C ≥90% >0.95 250 68 39.5
ESL300-48PC 100-240V 6250mA 29-48V 60°C 90°C ≥90% >0.95 259 98 44.5
ESL300-214PC 100-240V 1400mA 130-214V 60°C 90°C ≥90% >0.95 259 98 44.5
Remark Except 300W power supply, the length (L) of IP67 series product is 10mm longer.
