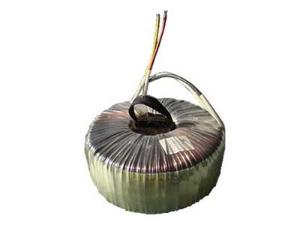

This toroidal transformer is especially designed and manufactured for wind turbine pitch control system, and it works for the purposes of voltage transformation, wave filtration, anti DC current saturation and anti inrush surge. This product is featured by low noise, high efficiency, long life span and other outstanding properties.
Technical Parameters| Rated power (kVA) | Efficiency (%) | Dimensions (D×H, mm) | Weight (kg) |
| 1 | ≥95 | 170×90 | 9 |
| 2 | ≥96 | 205×95 | 14 |
| 3 | ≥96 | 215×120 | 21 |
| 4 | ≥96 | 260×125 | 30 |
| 4 | ≥97 | 285×130 | 35 |
| 5 | ≥98 | 295×140 | 41 |
| 6 | ≥98 | 300×145 | 43.2 |
Note: These data are typical values and are for reference only. Customized products are provided upon request.
