Constant Voltage LED Driver

As the name implies, this constant voltage LED driver is able to deliver constant voltage, while the output current changes with load condition. This product fits for different kinds of LED strip lights and other LED lamps that require constant voltage.

Our LED driver shows the advantages of high stability, high efficiency, high power factor and long life span, and it is equipped with a control chip. Different protection functions are achieved for safety considerations, such as overload protection, overvoltage protection, over temperature protection, short circuit protection, etc.

Constant Voltage EU Version LED Driver (EBP Series) ① EU Version LED Driver (ELP, EDP Series) ③ Constant Voltage EU Version LED Driver (ELP & EBP Series) ④

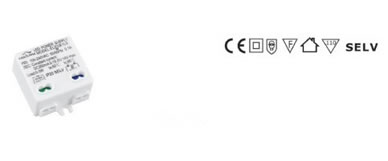

1. Constant Voltage EU Version LED Driver (EBP Series) ①

Features
Installation: Built-in
Power supply connection: Terminal block
Load connection: Parallel connection
Protections: Short circuit protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, IEC61347-2-13

Specifications

Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions
L(mm) W(mm) H(mm)
EBP006V0120SS 220-240VAC 50/60HZ 12VDC 0.5A 50°C 80°C 78% <0.3W >0.45 52 43 21.5
EBP006V0240SS 220-240VAC 50/60HZ 24VDC 0.25A 50°C 80°C 78% <0.3W >0.45 52 43 21.5
EBP009V0120SS 220-240VAC 50/60HZ 12VDC 0.75A 50°C 80°C 78% <0.3W >0.45 52 43 21.5
EBP009V0240SS 220-240VAC 50/60HZ 24VDC 0.38A 50°C 80°C 78% <0.3W >0.45 52 43 21.5

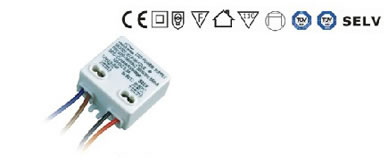

Constant Voltage EU Version LED Driver (ELP Series) ②

Features
Installation: Built-in
Power supply connection: Lead wire
Load connection: Parallel connection
Protections: Short circuit protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13

Specifications

Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions
L(mm) W(mm) H(mm)
ELP006V0090LT 220-240VAC 50/60HZ 9VDC 0.67A 45°C 80°C ≥72% <0.3W ≥0.5 50 40.8 21.5
ELP006V0120LT 220-240VAC 50/60HZ 12VDC 0.5A 45°C 80°C ≥76% <0.3W ≥0.5 50 40.8 21.5
ELP006V0150LT 220-240VAC 50/60HZ 15VDC 0.4A 45°C 80°C ≥78% <0.3W ≥0.5 50 40.8 21.5
ELP006V0240LT 220-240VAC 50/60HZ 24VDC 0.25A 45°C 80°C ≥76% <0.3W ≥0.5 50 40.8 21.5

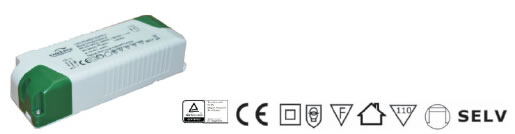

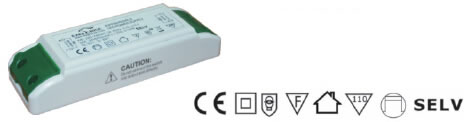

2. EU Version LED Driver (ELP, EDP Series) ③

Features
Installation: Independent
Power supply connection: Terminal block
Load connection: Parallel connection
Protections: Short circuit protection and over temperature protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6

Specifications
Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions Remark
L(mm) W(mm) H(mm)
ELP015V0120LS 220-240VAC 50/60Hz 12VDC 1.25A 50°C 80°C ≥87% <0.3W ≥0.8 115 45 27.5 －
ELP015V0240LS 220-240VAC 50/60Hz 24VDC 0.63A 50°C 80°C ≥85% <0.3W ≥0.8 115 45 27.5 －
ELP030V0120LS 220-240VAC 50/60Hz 12VDC 2.5A 50°C 80°C ≥85% <0.3W ≥0.9 140 45 27.5
ELP030V0240LS 220-240VAC 50/60Hz 24VDC 1.25A 50°C 80°C ≥86% <0.3W ≥0.9 140 45 27.5

Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions
L(mm) W(mm) H(mm)
EIP060V0120LS 220-240VAC 50/60Hz 12VDC 5A 45°C 85°C ≥86% <0.3W ≥0.9 157 54 36
EIP060V0240LS 220-240VAC 50/60Hz 24VDC 2.5A 45°C 85°C ≥86% <0.3W ≥0.9 157 54 36

Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions
L(mm) W(mm) H(mm)
EDP060V0240LS 220-240VAC 50/60Hz 24VDC 2.5A 50°C 85°C ≥86% <1W ≥0.9 239 45.5 30
EDP100V0240LS 220-240VAC 50/60Hz 24VDC 3.75A 50°C 85°C ≥86% <1W ≥0.9 229 60 35.5

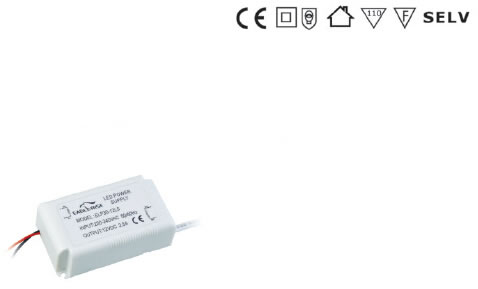

3. Constant Voltage EU Version LED Driver (ELP & EBP Series) ④

Features
Installation: Built-in
Supply connection: Lead Wire
Load connection: Parallel connection
Protections: Short circuit protection, over temperature protection, and overload protection

Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13

Specifications
Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions Remark
L(mm) W(mm) H(mm)
EBP012V0120LS 220-240VAC 50/60Hz 12VDC 1A 50°C 80°C ≥81% <0.3W ≥0.8 74 48 24
ELP18-12LS 220-240VAC 50/60Hz 12VDC 1.5A 50°C 85°C ≥83% <0.3W ≥0.8 74 48 24
ELP30-12LS 220-240VAC 50/60Hz 12VDC 2.5A 45°C 80°C ≥83% <0.5W ≥0.9 95 54 33
EBP030V0120LS 220-240VAC 50/60Hz 12VDC 2.5A 45°C 80°C ≥83% <0.5W ≥0.9 95 54 33 －
EBP045V0120LS 220-240VAC 50/60Hz 12VDC 1.5A 50°C 85°C ≥85% <0.3W ≥0.8 110 60 33 －

Model Input Voltage Output
Voltage		 Operating
Current		 Ta Tc Typical
Efficiency		 Standby
Power		 Power
Factor		 Dimensions Remark
L(mm) W(mm) H(mm)
EBP012V0240LS 220-240VAC 50/60Hz 24VDC 1A 50°C 80°C ≥81% <0.3W ≥0.8 74 48 24
ELP18-24LS 220-240VAC 50/60Hz 24VDC 1.5A 50°C 85°C ≥83% <0.3W ≥0.8 74 48 24
ELP30-24LS 220-240VAC 50/60Hz 24VDC 2.5A 45°C 80°C ≥83% <0.5W ≥0.9 95 53 33
EBP030V0240LS 220-240VAC 50/60Hz 24VDC 2.5A 45°C 80°C ≥83% <0.5W ≥0.9 95 53 33 －
EBP045V0240LS 220-240VAC 50/60Hz 24VDC 1.5A 50°C 85°C ≥85% <0.3W ≥0.8 110 60 33 －

For more information, please refer to the following PDF.

Constant Voltage Led Driver
