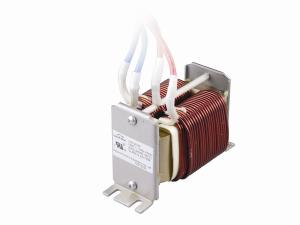

Amorphous Core Inductor for Solar String Inverter

The amorphous core inductor for solar string inverter is used to smooth and filter waves. It makes use of CD amorphous core, and it shows the advantages of low noise, low high-frequency loss as well as low inductance deviation.

Technical Parameters

Model	Current(A)	Inductance (mH)	Dimensions (mm)
LC0010	5-10	0.5-7.0	105×65×90
LC0015	10-15	0.5-7.0	130×80×90
LC0020	15-20	0.5-5.0	140×80×90
LC0025	20-25	0.5-5.0	140×80×90
LC0030	25-30	0.3-5.0	140×80×90
LC0035	30-35	0.3-5.0	165×120×90
LC0040	35-40	0.3-5.0	165×120×90
LC0045	40-45	0.3-5.0	165×120×90

Note: These data are typical values and are for reference only. Other products are provided upon request.

Related Names
Photovoltaic Solar Inverter Reactor | Coupled Inductor | Common Mode Choke
